Product Details
Place of Origin: China
Brand Name: CNWAGNER
Certification: CE
Model Number: 19070-97204
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $4.65 - $10.65/ Piece|50 Piece/Pieces(Min. Order)
Packaging Details: Neutral packing
Delivery Time: 5-30 after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month
MOQ: |
10 Sets |
Color: |
Black |
Compatibility: |
Universal |
Car Fitment: |
Applicable For Toyota Hilux Camry Corolla Prado Highlander |
OE No.: |
19070-97204 |
Warranty: |
12 Months |
MOQ: |
10 Sets |
Color: |
Black |
Compatibility: |
Universal |
Car Fitment: |
Applicable For Toyota Hilux Camry Corolla Prado Highlander |
OE No.: |
19070-97204 |
Warranty: |
12 Months |

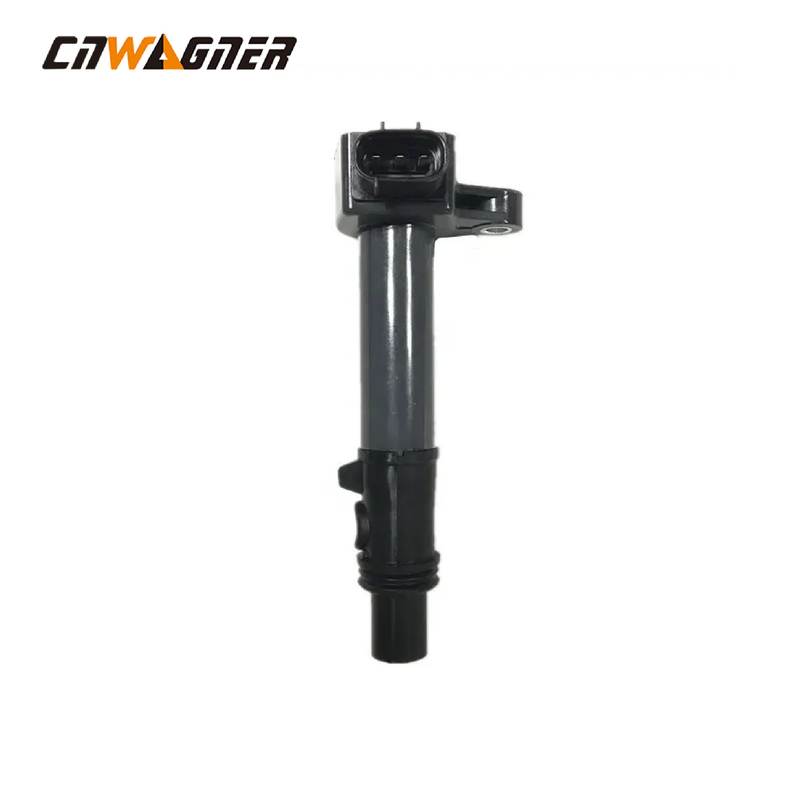

CNWAGNER Wholesale Auto Car Parts Ignition Coils Pack 19070-97204 For Daihatsu
Function:
Usually there are two sets of coils inside the ignition coil, the primary coil and the secondary coil. Primary coil with thicker enameled wire, about 0.5-1 mm enameled wire around 200-500 turns; secondary coil with thinner enameled wire, usually about 0.1 mm enameled wire around 15,000-25,000 turns. One end of the primary coil is connected to the low voltage power supply (+) in the car, and the other end is connected to the switching device (disconnector). One end of the secondary coil is connected to the primary coil, and the other end is connected to the output of the high voltage line to output high voltage electricity.
The reason why the ignition coil can turn the low voltage electricity in the car into high voltage is that it has the same form as an ordinary transformer, and the primary coil has a larger turns ratio than the secondary coil. However, the ignition coil works differently from the ordinary transformer, the working frequency of the ordinary transformer is fixed 50Hz, also known as the industrial frequency transformer, while the ignition coil is working in the form of pulse, which can be regarded as a pulse transformer, it is based on different engine speeds to different frequencies repeatedly for energy storage and discharge.
When the primary coil is connected to the power supply, with the growth of the current around the production of a very strong magnetic field, the iron core stored magnetic field energy; when the switching device so that the primary coil circuit is disconnected, the primary coil's magnetic field rapidly attenuate, the secondary coil will be induced by a very high voltage. The faster the magnetic field of the primary coil disappears, the greater the current at the moment of current disconnection, the greater the turns ratio of the two coils, the higher the voltage induced by the secondary coil.
Specifications:
| Product name | CNWAGNER Wholesale Auto Car Parts Ignition Coils Pack 19070-97204 For Daihatsu |
| OE number | 19070-97204 |
| Car Fitment | Applicable For Toyota Hilux Camry Corolla Prado Highlander |
| Delivery time | 3-7 Days |
| Size |
Neutral packing
|
| Color | Black |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Trade Assurance etc |
Our company sells automobile engine cylinder head, cylinder block, crankshaft, camshaft, connecting rod, throttle body, gasket, steering rack, steering pump, turbocharger, gearbox, fuel pump, air conditioning compressor, brake caliper, vacuum pump, window regulator / window regulator, wiper connecting rod / wiper mechanism / motor, control arm, leaf spring, sensor, thermostat, EGR valve, etc.
About Us:
Shipping
Delivery time: if the goods are in stock, we can deliver them within 5 working days. If the goods are out of stock, the delivery time is 7-45 days, depending on the quantity.
Provide express, air and sea transportation; If you don't have a transportation agent, we can also handle transportation for you. It takes about 5-7 working days for express delivery and 35 days for sea transportation.
1. the product has excellent workmanship and perfect appearance
2. advanced technology and excellent performance
3. energy saving, environmental protection, reliability and durability
4. continuous supply and real service
Our Promise
1. we strive to provide customers with the most favorable prices.
2. ensure good quality
3. deliver products on time with high-quality packaging
4. achieve win-win and long-term cooperation
FAQ
Q1: Can you produce according to sample or technical drawing?
A1: We have very professional engineers who can well study samples and drawings. So we surely can produce according to samples and technical drawings.
Q2: How about the price
A2: We are professional trading company. So we can supply the most effective product with the best price.
Q3: what is the term of payment
A3: We can accept TT/Western Union/Alibaba online payment/(Alibaba online payment offer TT, VISA, MasterCard, e-checking)
Q4: How about the delivery time
A4: Within about 3-7 working days after received the payment.
