Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100

Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100
Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100 Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100 Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100

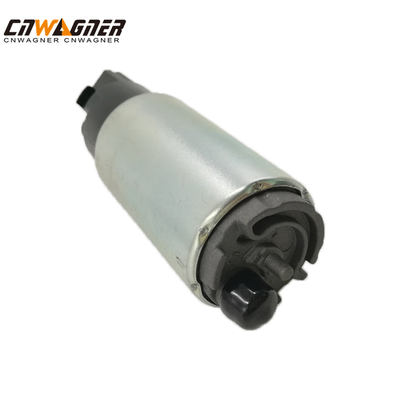

Large Image :  Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100

Product Details:
Place of Origin: Chongqing China
Brand Name: CNWAGNER
Certification: CE ROHS TS16949
Model Number: 23221-75020 23221-50100
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 3.56USD TO 3.89USD PER PIECE
Packaging Details: neutral packing
Delivery Time: 3-25days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per day

Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100

Description
Products Name: Eletric Fuel Pump TOYOTA Land Cruiser Prado 23221-75020 23221-50100 Part Number: 23221-75020 23221-50100
Car Fitment: For TOYOTA Land Cruiser Prado Function: Fuel Pump
Warranty: 1 Years Condition: 100% New
Voltage: 12 2H Maximum Pressure: 113.0 PS
High Light:

Land Cruiser Prado Electric Diesel Fuel Pump

,

TOYOTA 23221-75020

,

Fuel Pump 23221-50100

Eletric Fuel Pump TOYOTA Land Cruiser Prado 23221-75020 23221-50100



Additional Specifications:

Pump Type: Electric

Outlet Type: Hose

Average Current Draw: 5

Fuel Type: Gas

Average Flow Rating (GPH): 30

Terminal Gender: Male

System Pressure: 44 psi

Package Contents: Electric Fuel Pump, Instruction Sheet

Location: IN-TANK

Gasket Or Seal Included: No

In Tank or External: In Tank

Inlet Type: Strainer

Item Grade: Standard Replacement

Maximum Pressure (PS): 113.0

Strainer Included: No

Interchanges: E8571, 69936, P76514, 951-0024, E16334, E16334, SP1351, 23221-75020

Outlet Outside Diameter (IN): 0.375



Products detail



Products name Eletric Fuel Pump TOYOTA Land Cruiser Prado 23221-75020 23221-50100
Part number 23221-75020 23221-50100
Feature TOYOTA Land Cruiser Prado
Sample Offer
Maximum Pressure 113.0 PS
Voltage 12 2H
Inlet Type Strainer
System Pressure 44 psi



Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100 0Land Cruiser Prado Electric Diesel Fuel Pump 23221-75020 23221-50100 1



working principle





1. Mechanically driven diaphragm gasoline pump

Generally driven by the eccentric wheel on the camshaft, its working conditions are as follows:

①During the rotation of the oil suction camshaft, when the eccentric wheel pushes the rocker arm and pulls down the pump film pull rod, the pump film drops, generating suction, and the gasoline is sucked out of the fuel tank, and passes through the fuel pipe, the fuel filter, and the fuel that enters the gasoline pump. room.

②Oil pumping When the eccentric wheel rotates through a certain angle and no longer pushes the rocker arm, the pump membrane spring stretches and the jacking pump membrane rises, pushing gasoline from the delivery valve to the float chamber of the carburetor.

Generally, the maximum fuel supply of a gasoline pump is 2.5 to 3.5 times larger than the maximum fuel consumption of a gasoline engine. When the pump oil volume is greater than the fuel consumption and the needle valve of the carburetor float chamber is closed, the pressure in the oil pump outlet pipeline increases, which is reflected in the oil pump, which shortens the diaphragm stroke or stops working.



2. Electric gasoline pump

The working condition of the electric gasoline pump is that it does not rely on the camshaft to drive, but relies on electromagnetic force to repeatedly suck the pump membrane. This kind of electric pump can freely choose the installation position and can prevent the phenomenon of air lock.

The gasoline pump of the electronically controlled gasoline injection system generally adopts a new impeller-type electric pump and is installed in the gasoline tank. Its pumping pressure is also higher than that of the gasoline pump of the carburetor fuel supply system.





We provide a simple no-nonsense returns policy:

1. Always contact us first. We cannot process a return if you do not email us.
2. We can only accept returns if they are either genuinely faulty or in pristine condition (have not been fitted and in original unmarked packaging).
3. Returns received by us 30 days or more after the date of despatch will not be accepted unless specifically agreed beforehand.
4. We will process your return within 2 working days and will act quickly to action whatever we have agreed over email (refund, replacement or exchange).
